Technical Specifications:

Sensor Specs:

• Type: Optical
• Resolution (dpi): 500
• 1:1 Verification: < 1 sec
• 1:20,000 Face < 1 sec
• 1:1,00,000 FP < 1 sec
• Identification Time: < 1 sec
• Template Size: 400 bytes
• Equal Error Rate: < 0.01%
• FAR: 0.0001%
• FRR: 0.01%
• Image Size (pixels): => 400 * 400
• Sensing area (mm): 15.5mm X 19mm

System Features:

• Memory: 2GB RAM + 16GB Flash
• Event buffers: 1,00,00,000 (10 million)
• Fingerprint Capacity(1:1) 5,00,000 & (1:N) 1,00,000; Users Capacity: 5,00,000
• Face Capacity(1:N): 20,000 & 20,000(1:1);
• Image logs: 20,000
• Cards / Readers Compatible: Default Mifare / EM Reader; HID iClass & Prox (Optional)
• Card read range: 8 to 10 cm.
• Authentication type combinations: Face, FP, PW, Face & Finger, Face or finger, FP & PW, card, Card | FP, Card & FP, Card or PW, Card & PW, Card & FP & PW etc.
• Facility Code: Available
• Device OS: Android 6.0
• Sensor Mode: 1:1 / 1:N (configurable)
• Templates Mgmt from Software: Available
• Template on Smart card: Yes (on Mifare)
• Ubio-Xpro2 Face Templates are not compatible with AC7000, Ubio-XPro &UBIO- XProLite
• Ethernet : 100 bps (Default) /10 mbps
• Custom logo can be uploaded in device
• Face registration through mobile: Available
• Mobile image registration for Face recognition: Available.

Access Control Features:

• Create up to 9999 Time Zones with up to 12 transaction bands per day)
• Inputs: 3 monitoring input & 1 Exit(Configurable)
• Outputs: 2 o/p
• Expiry Date; Blacklisting; Deny List; Duress User available
• Dual / Multi-Finger Authentication available
• Global Anti-pass back: Available. Soft & Hard Anti Pass back
• Fire, Emergency, Panic etc. integration is available
• External Lamp/Siren connectivity available.

Security Features:

• Email sending facility through application in case of critical events like matching fail, tamper, door forced/not closed, blacklisted user attempt etc.
• Integrated with real time alarm display on server
• Configurable card or fingerprint verification for logging in to the device for extra security
• Can open all doors from network in case of fire or emergency
• 0-9 security levels to adjust FRR and FAR as per the environment and customer needs
• Device security enhanced by adding user as admin in device
• Face technology – fake face free technology
• Device security enhanced by adding user as admin in device.

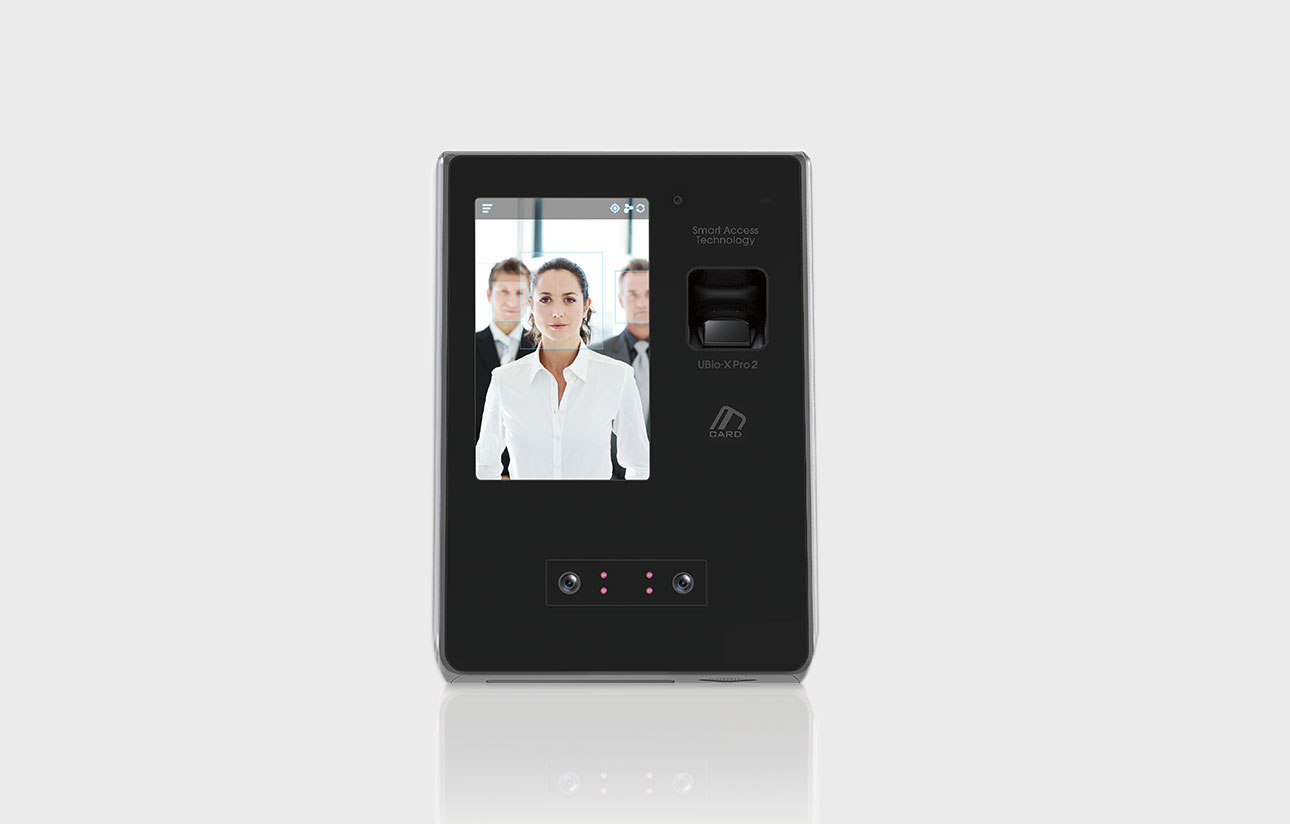

Hardware Features:

• Dual Camera with IR cut off
• Buzzer: Multi tone Buzzer o/p
• LCD Display: 5” TFT Colour Touch screen with Android platform
• Touch Keypad: 0-9 key numeric, Four Function keys and Enter key.
• Output: TCP/IP. Wi-Fi (Optional)
• In built dual smart card reader

Warranty:

• Product: 1 year for any manufacturing defects / workmanship
• Sensor: 10 Year for any Manufacturing defects (Failure of sensor due to ESD /physical damage will not be covered under warranty)

Accessories : (Optional)

• Standard or Battery Back-up Power Supply
• Time Attendance Software
• Card: EM; Mifare® (1K,4K); HID I Class; HID Prox (Optional)
• Strike Lock / Electromagnetic Lock, Auto door
• Egress Switch
• 12V/7 AH Battery

Applications:

• Time Attendance System
• Physical Access Control

Areas:
