TimeWatch

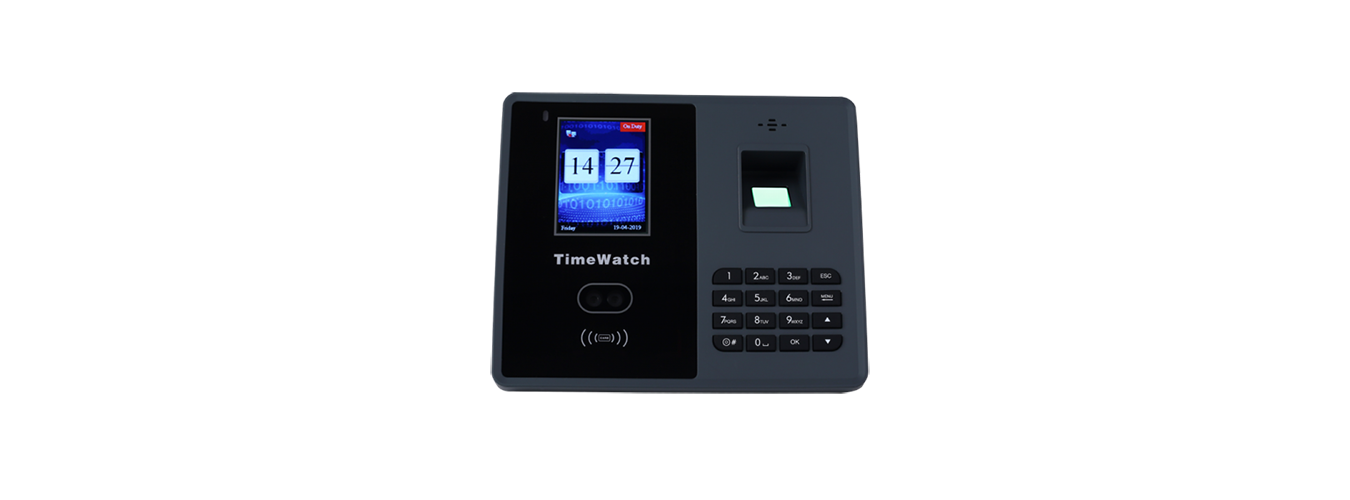

ATF-686+
ATF-686+ face recognition time & attendance terminal support up to 1500 face templates, 3000 fingerprint,5000 card/password with TimeWatch latest hardware platform and algorithm. It offers brand new UI and user-friendly operation interface to provide smooth user experience. With advanced face algorithm and muilt-biometric verification technology, the terminal’s security level of verification is significantly enhanced.
Description:
- 1500 face and 5000 fingerprint 3000 card /password templates
- High verification speed
- Advanced and user-friendly UI
- Built-in battery backup
- Providing approximately 2 to 4 hours of continuous operation (depend on usage)
- New framework firmware, easy to extend functions and customize client’s requirements
- One face template is registered for one user only & 3 finger
- Built in access control
- Time Zone
- Door (Open/Close)
- User - Validity
- Cloud Built-in
- Wi-Fi Built-in
Parameter:
| Capacity | User Capacity : 1500 Face Capacity : 1500 Finger Capacity : 5000 Log Capacity : 200000 Password Capacity: 3000 |
|---|---|
| Display | 2.8” TFT Color Screen |
| Interface | TCP/IP,(LAN / WAN) |
| Dimension | 199 × 118 × 97 (mm) |
| General info | FRR : 0.001% FAR : 0.00001% LCD : 2.8” TFT Color Screen Verification Time : <0.5 Sec Fingerprint Image Display : Yes Operating Voltage: DC 12V/2A Battery Backup: Yes Access Control : Yes Sensor : 600DPI Cloud : In-Built WiFi : In-Built |

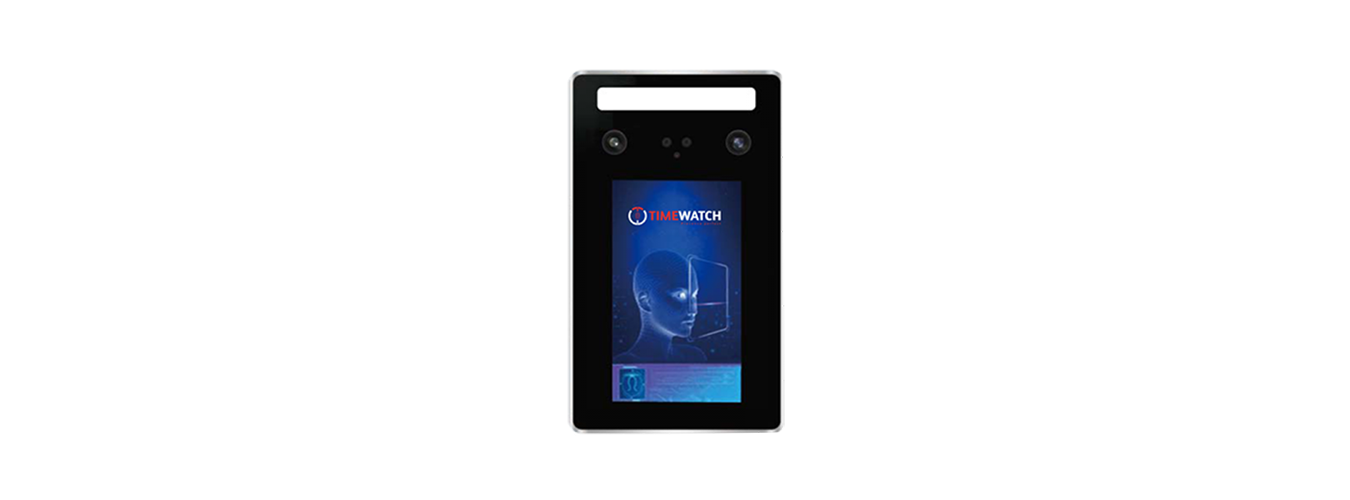

TW-VF01
Speed face recognition product with high performance and high reliability, which depends on the deep learning algorithm, also having the characteristics of quick recognition speed and high accuracy. This product supports 1:1 and 1:N mode. Based on the person’s facial texture, shape, and movement.
Description:
- Exquisite Case Appearance in Aluminum Alloy Materials
- Support Dynamic Face Detection, and Adopting Face
- Recognition Tracking Algorithm
- Recognition distance: 0.5 - 3 m
- Fast Face Recognition Speed within 0.2s
- Support LED and Infrared Fill Light at night
- Support Live Movement Detection
Applications:
Logistics, Bank, Office, Factory, Education, Retail, Government, Health.
Parameter:
| Capacity | User ID Capacity : 5,000 Face Capacity : 5,000 User Record Capacity : 2,000,000 |
|---|---|
| Display | 5 inch Electronic Capacity Touch Screen |
| Interface | TCP/IP USB type-A port WIFI |
| Dimension | No |
| General info. | Face Recognition Mode : 1:1, 1:N Identification Display : Person Name & Number Face Recognition Time : Less than 0.2s Intelligent Function : Infrared Live Person Identification Detection Pure dynamic face recognition : 0.5-3m Infrared live moment detection : 0.5-1.5m |
